Voltage Protector

> Products > Voltage Protector > VP-138-15A


VP-138-15A is voltage protector that guarantees power protection from an over-voltage or under-voltage situations.
With built-in 15 seconds, 30 seconds and 3 minutes delay timer protection, voltage protector is perfect for your refrigerators, air conditioners and TVs to avoid sudden electrical surges especially during the initial power entry when power is recovered from blackout..

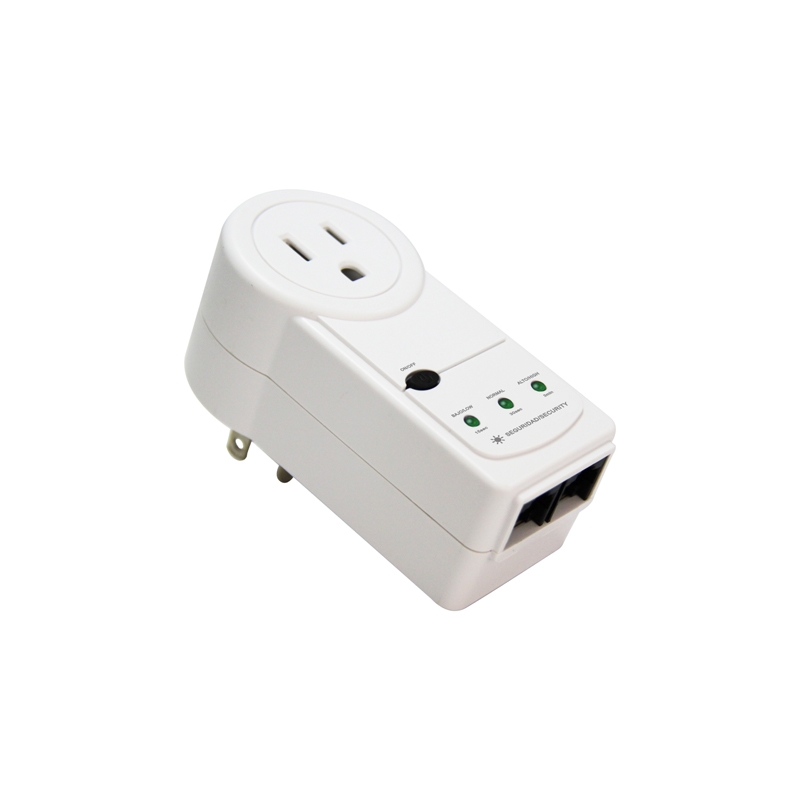

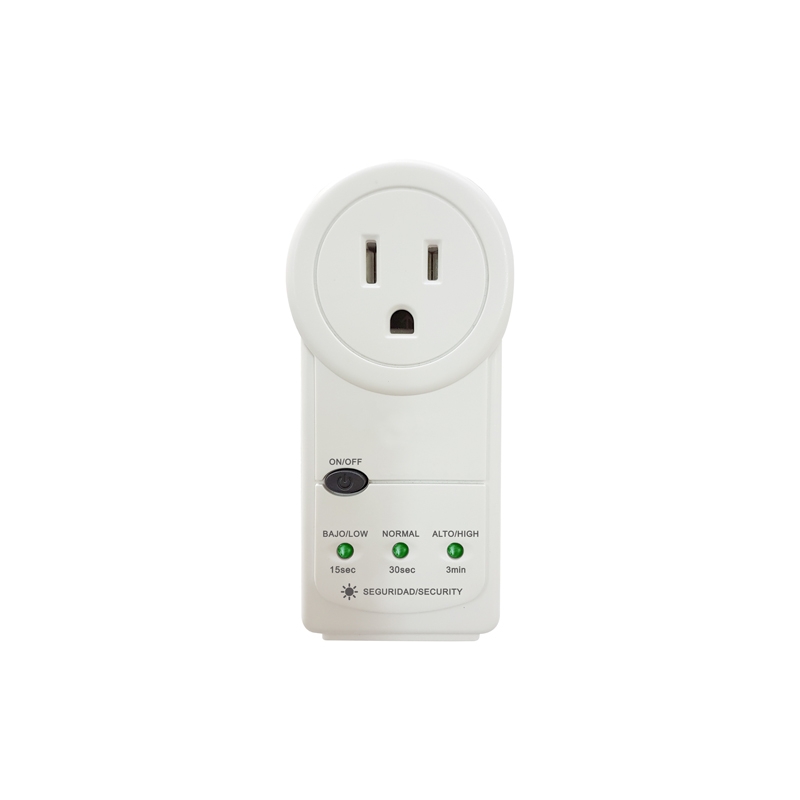

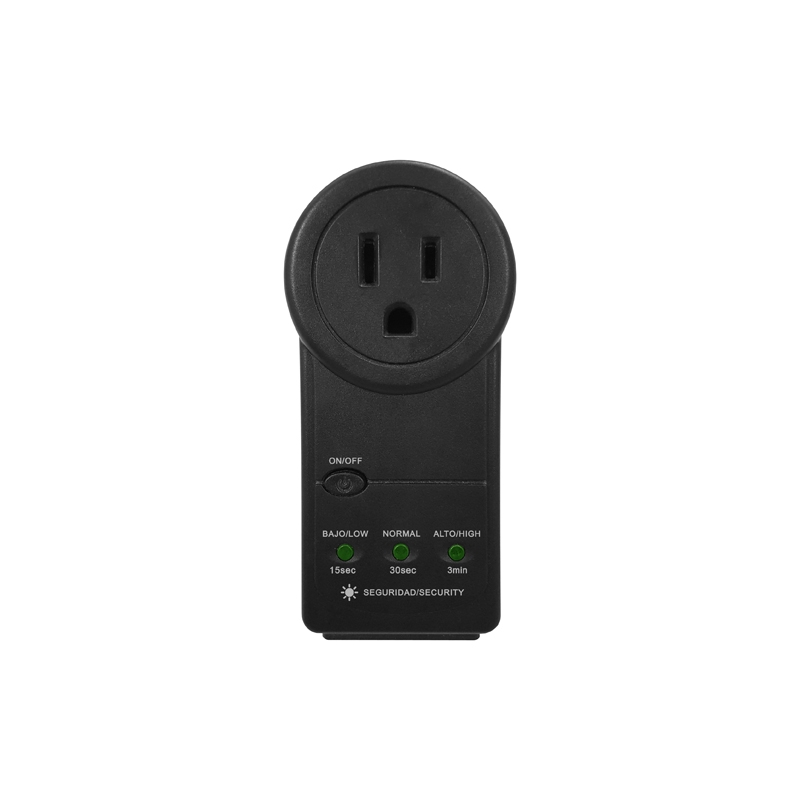

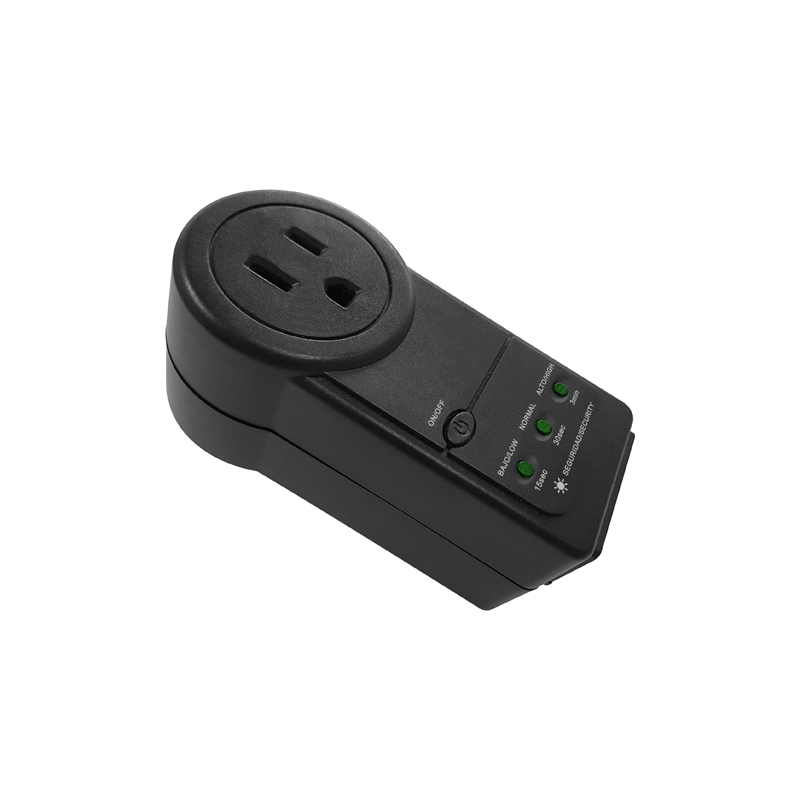

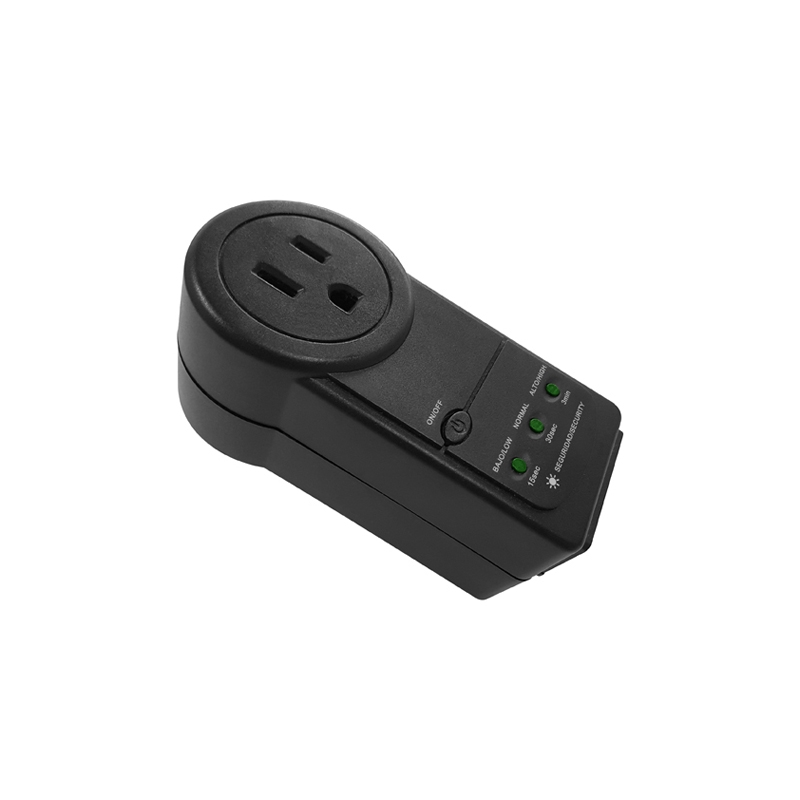

 VP-138-15A (Nema 5-15R)

  • Built-in delay protection 15 seconds, 30 seconds, 3 minutes
  • Microprocessor control guarantees better performance
  • Provide high / low voltage cut-off protection
  • Provide lightning / surge protection
  • On/Off switch for power saving

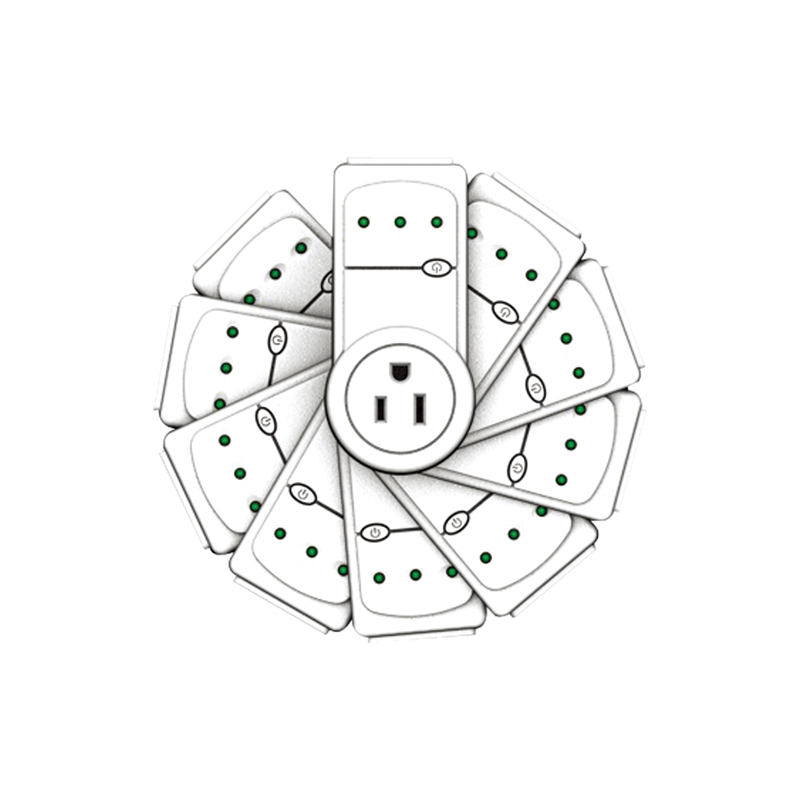

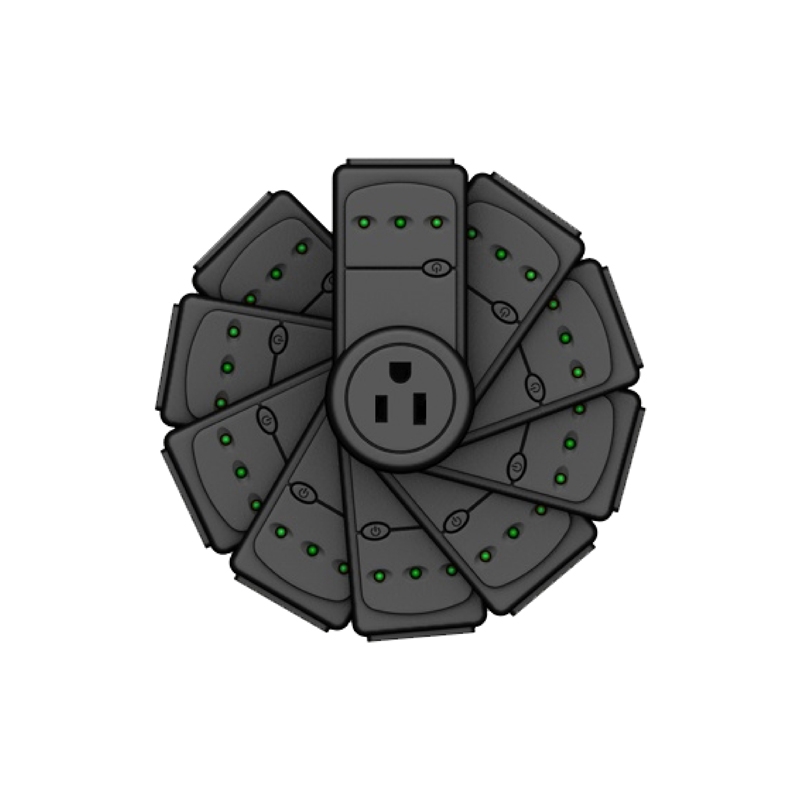

  • 350 degrees rotation
MODEL VP-138-15A
Nominal Voltage 115Vac or 230Vac
Voltage Range 90-140Vac for 115Vac System ; 180-268Vac for 230Vac System
Frequency 50/60Hz (Auto-sensing)
Plug Nema5-15P*1pc (On the rear)
Voltage Same as input
Frequency Same as input
Outlet Nema5-15R*1pc
Power Line Surge Energy Rating 900 Joules
Delay Reconnection 15 seconds / 30 seconds / 3 minutes
Tel./Fax/Modem/DSL port RJ-45 / RJ-11
High/Low Voltage Cut-off Yes
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Dimension 100*45*45mm
Net Weight 143g
**Product specifications are subject to change without further notice.
