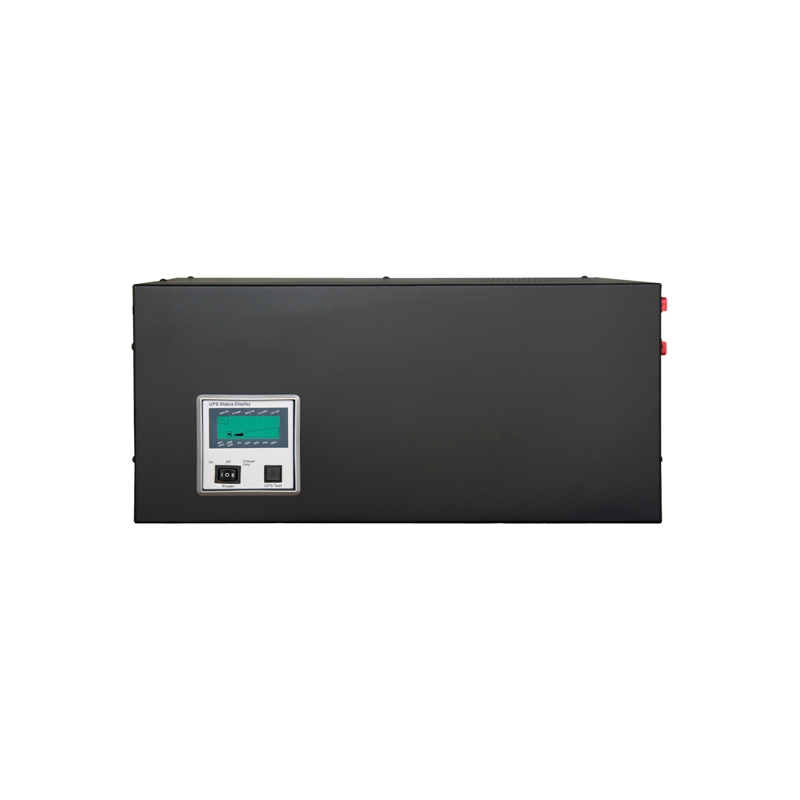

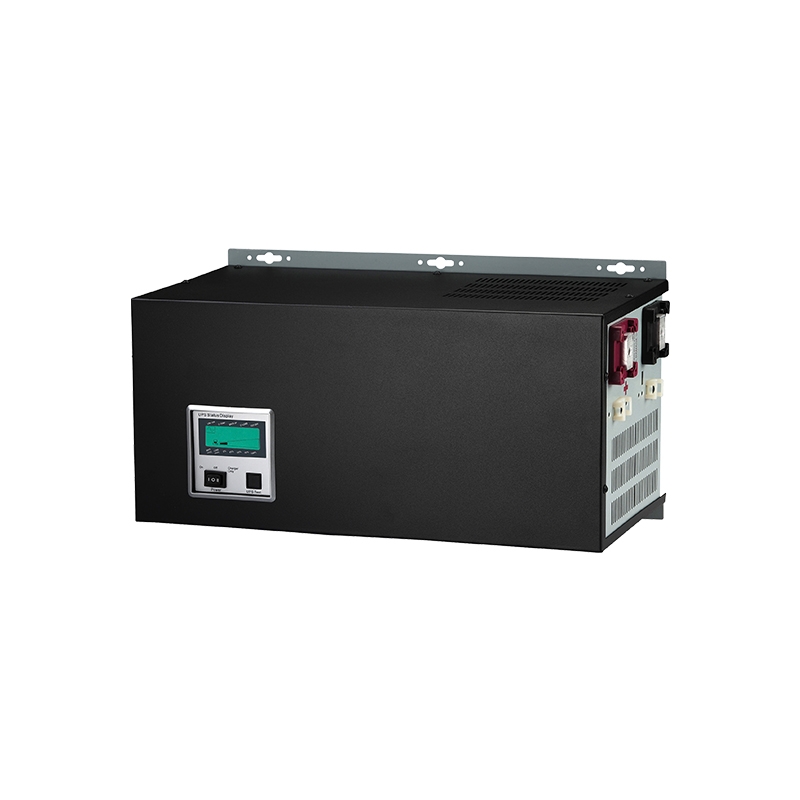

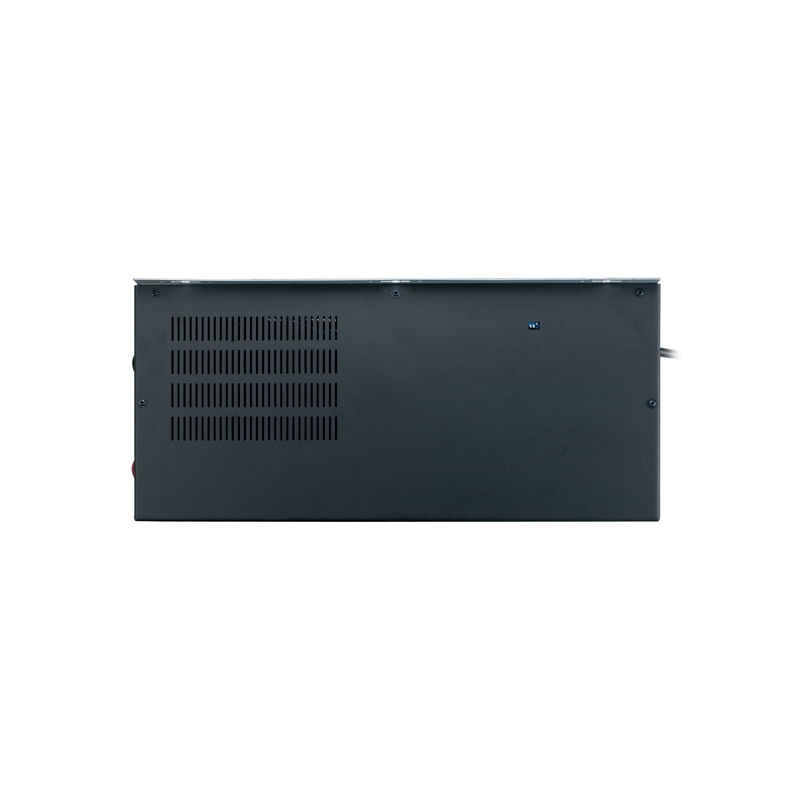

INVISIMO Series
1000VA-3200VA


INVISIMO series is a long back-up UPS with fast charger 5-30Amp.
Users can select charging current by dip switch. INVISIMO can charge itself when power switch is off. It also has over-charge protection to protect battery.
With built-in DC start function enables UPS to be started without AC power supplied. It is suitable for users who need longer back-up time to protect their equipments.

INVISIMO Series 1000VA-3200VA




  • Built-in DC start function enables UPS to be started without AC power supplied
  • UPS will charge itself even though power switch is off (Off mode charging)
  • High efficiency and low idle current to keep low operating cost
  • 5-30Amp selectable charging current adjusted by dip switch
  • Advanced battery management (ABM)
  • Quiet operation, heavy duty reliability
  • Short circuit and overload protection
  • Over temperature protection
  • Over charge protection
MODEL INVISIMO-1000 INVISIMO-1500 INVISIMO-2000 INVISIMO-3200
CAPACITY 1000VA/600W 1500VA/900W 2000VA/1200W 3200VA/2000W
INPUT
AC Voltage 110/115/120Vac or 220/230/240Vac
Voltage Tolerance (AC) 90Vac-135Vac or 187Vac-264Vac +/-4%
DC Voltage 12Vdc 24Vdc
Voltage Tolerance (DC) 10Vdc-14Vdc 20Vdc-28Vdc
Frequency 47Hz-53Hz or 57Hz-63Hz
OUTPUT
Voltage 110/115/120Vac or 220/230/240Vac
Voltage Tolerance Battery mode: +/-7%
Frequency 50Hz or 60Hz
Frequency Tolerance Battery mode: +/-1Hz
Transfer Time <10ms (Typical)
Waveform Simulated sinewave
BATTERY
Type Maintenance free dry type (Suggested)
Capacity Up to 1000Ah
Battery Low Level 10.8Vdc +/-0.2Vdc 21Vdc +/-0.5Vdc
Battery Cut-off Level 10Vdc +/-0.2Vdc 20Vdc +/-0.5Vdc
CHARGER
Battery Charge Voltage 13.6Vdc +/-2Vdc 27.5Vdc +/-0.6Vdc
Charger Capacity 30Amp max. (Adjustable via dip switch)
Over Charge Protection 14.5Vdc +/-0.5Vdc 29Vdc +/-0.5Vdc
DISPLAY
Control Panel Power on/off & UPS test button, Battery charge current adjustment
LCD Display Line mode: AC normal LCD lighting/Battery mode: Back-up LCD lighting
Overload: O-Load LCD lighting/Over-temperature: O-Temp, LCD lighting/UPS off: Cut-off LCD lighting
Load level: 5-steps LCD lighting/Battery level: 5-steps LCD lighting
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-90% (Non-condensing)
Acoustic Noise <45dB at 1M
PHYSICAL
Dimension (D*W*H) 420*218*160mm
**Product specifications are subject to change without further notice.
