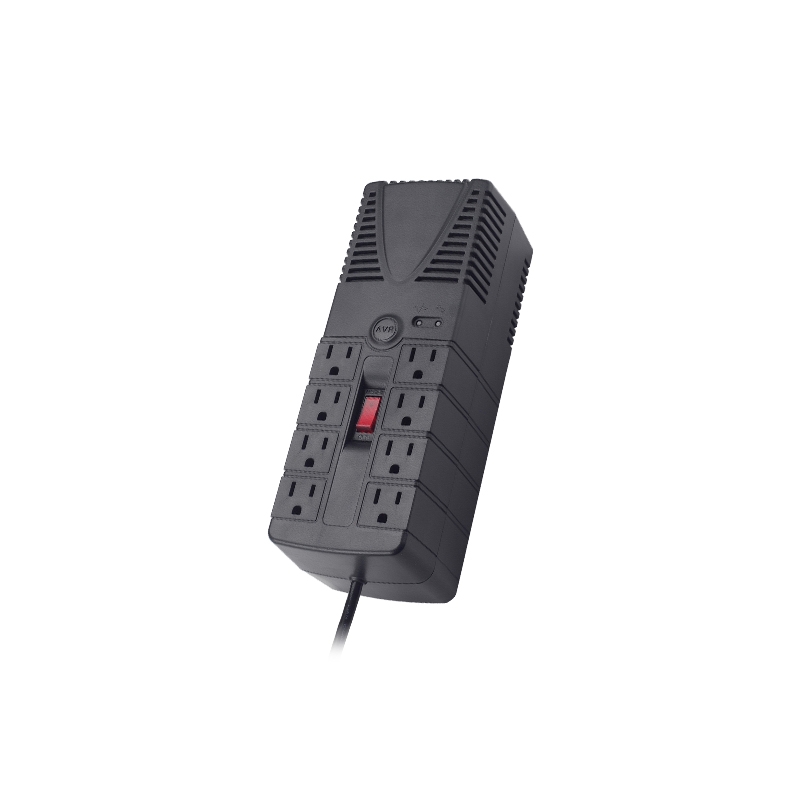

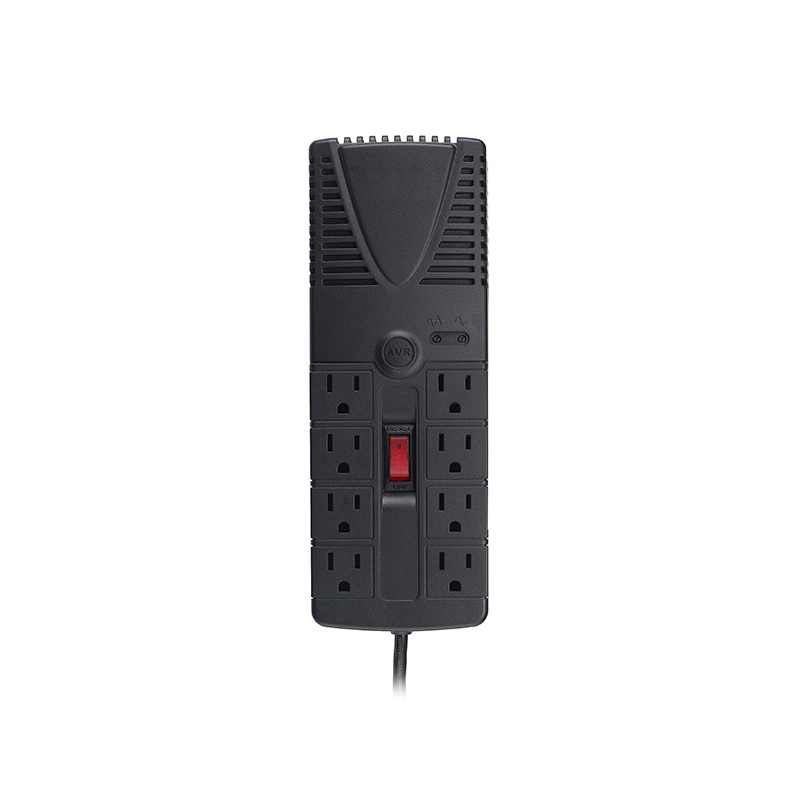

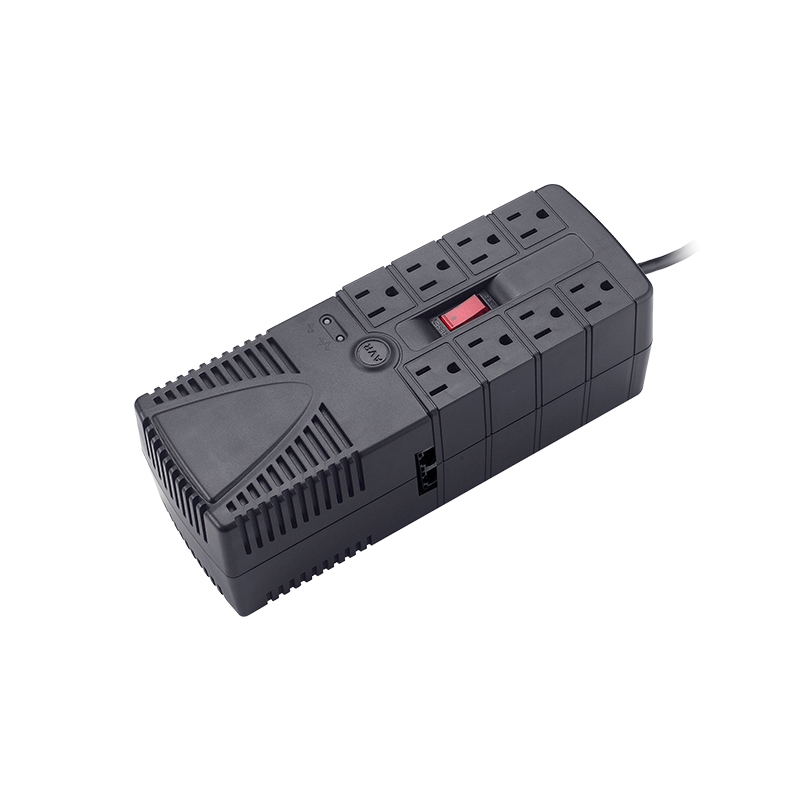

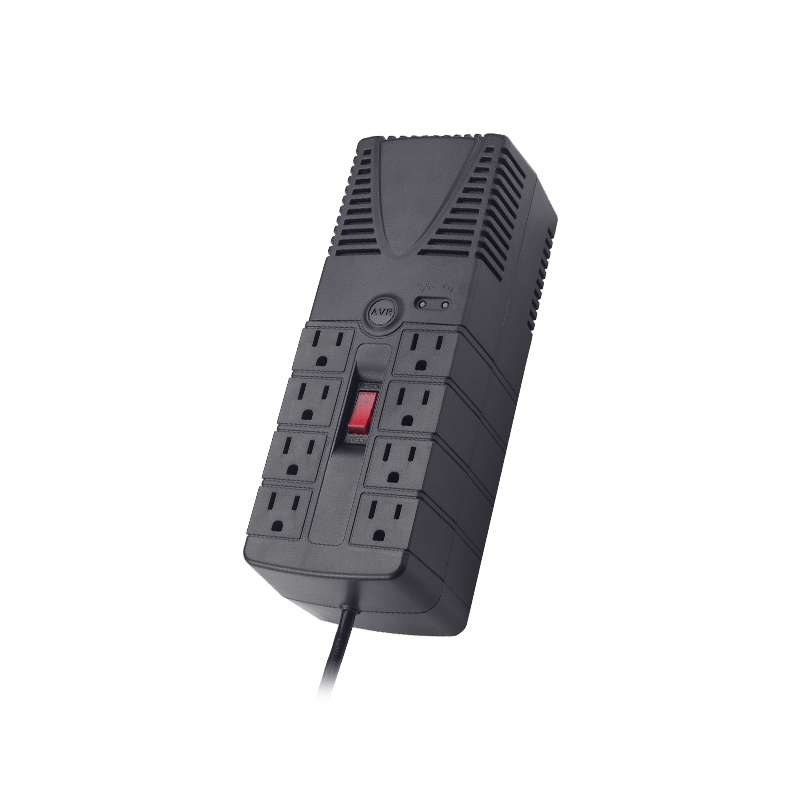

PS Series 800VA-2000VA
Nema5-15R


Power star Nema5-15R series provides 3-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
To ensure safety of devices connection, Power star series embedded with thermal switch for over-temperature protection.

PS Nema5-15R  Series 800VA-2000VA


  • Provide stable output voltage through boost and buck stabilizer
  • Built-in thermal switch for over-temperature protection
  • Provide modem / phone line surge protection
  • Provide overload & short circuit protection
  • User-friendly visual LED indicators
  • Anti-flammable plastic housing
  • Accept wide input range
MODEL PS-800 PS-1200 PS-2000
CAPACITY 800VA/400W 1200VA/600W 2000VA/1000W
INPUT
Voltage 110/115/120Vac or 220/230/240Vac
Voltage Range 110/115/120Vac: 90-144Vac ; 220/230/240Vac: 161-288Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 3-steps (2-steps Boost & 1-step Buck)
Output Receptacles 8pcs Nema 5-15R Outlets
Protection Surge protection: 175 Joules
Overload/short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
INDICATORS
Power On/Off LED Green
Output Cut off LED Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 245*89*87mm
**Product specifications are subject to change without further notice.
