Type A + Type C

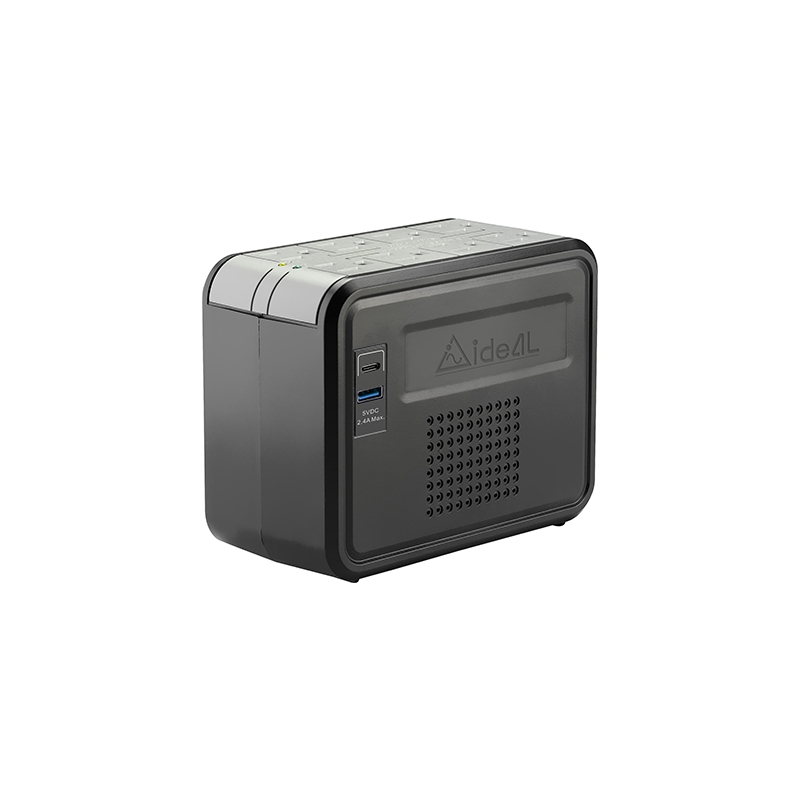

PSCU Series
Type A + Type C

Power Star Color series AVR offers several colors for panels.It provides 1-step boost and 1-step buck to stable output voltage.
It provides built-in thermal switch for over-temperature protection to protect connecting loads.
Also, 5VDC 2.4A max USB charger is offered for smart phones and tablet charging.

PSCU Series 600VA-1000VA(Type A + Type C)

  • 5VDC USB charger 2.4A max. for charging iPad / iPhone / smartphone
  • Provide stable output voltage through boost and buck stabilizer
  • Built-in thermal switch for over-temperature protection
  • Provide modem / phone line surge protection
  • Provide overload & short circuit protection
  • Stylist design with colorful panels
  • Anti-flammable plastic housing
MODEL PSCU-600 PSCU-800 PSCU-1000
CAPACITY 600VA/300W 800VA/400W 1000VA/500W
INPUT
Voltage 110/115/120Vac or 220Vac
Voltage Range 110/115/120Vac: 92-138Vac ; 220Vac: 184-276Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles Nema5-15R or Universal Nema: 4pcs AVR regulated & surge protected + 4pcs surge protected only
USB Charger 2 ports 5VDC 2.4A Max.
Protection Overload/Short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
INDICATORS
Power On/Off LED Green
Regulation LED Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension (D*W*H) 145*75.5*114mm
Net Weight 1.0kg 1.4kgs 1.6kgs
**Product specifications are subject to change without further notice.
