9300LB HV Tower Series
1KVA-3KVA

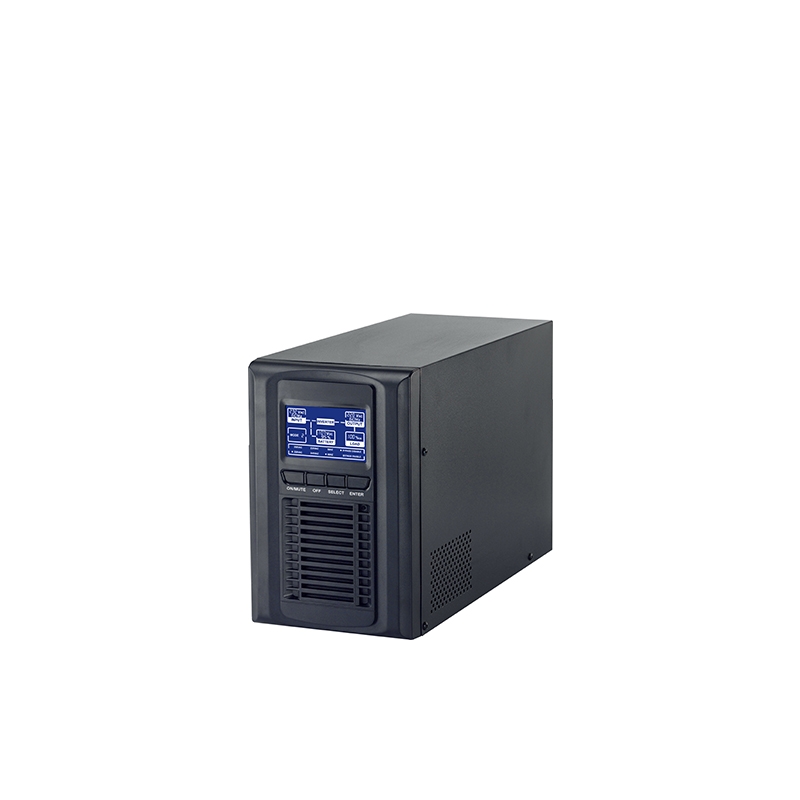

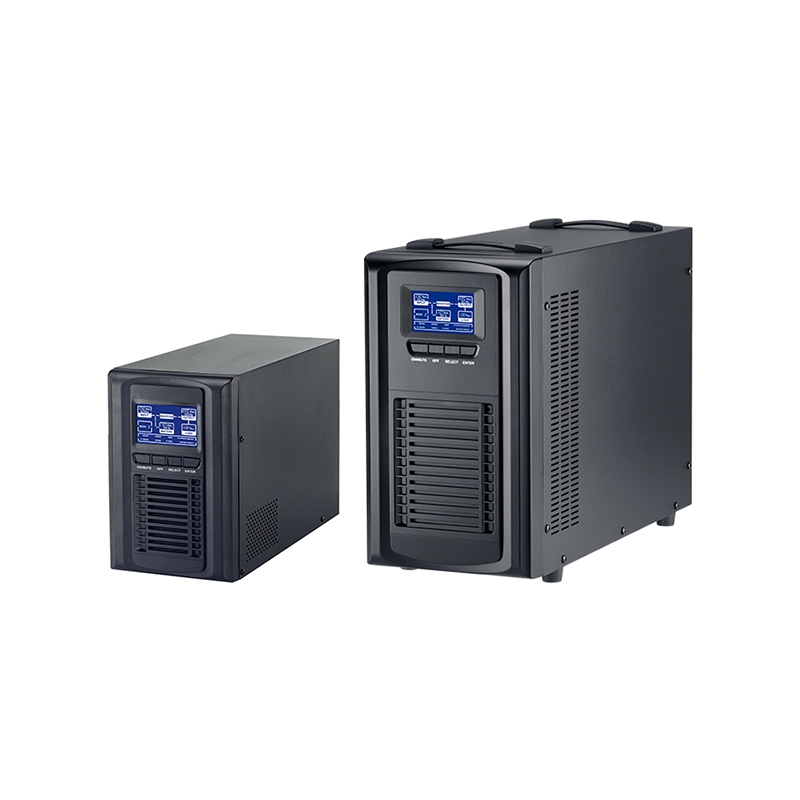

IDEAL-9300LB 1-3KVA series is true sine wave double conversion On-line UPS tower type model that provides output power factor 0.8 for high performance and efficiency.
With Microprocessor control design, it lowers the defective rate of UPS to guarantee high reliability and to protect any critical applications.
Individual PDU module is used as Power Distribution Unit in conjunction with IDEAL-9300LB 3KVA UPS system,which will be more convenient and efficient when UPS needs maintenance service.

9300LB HV Tower Series 1KVA-3KVA (Comprehensive LCD Display)


  • Individual power distribution unit (PDU) maintenance bypass switch (Optional for 3KVA)
  • High performance true double conversion On Line UPS 1-3KVA

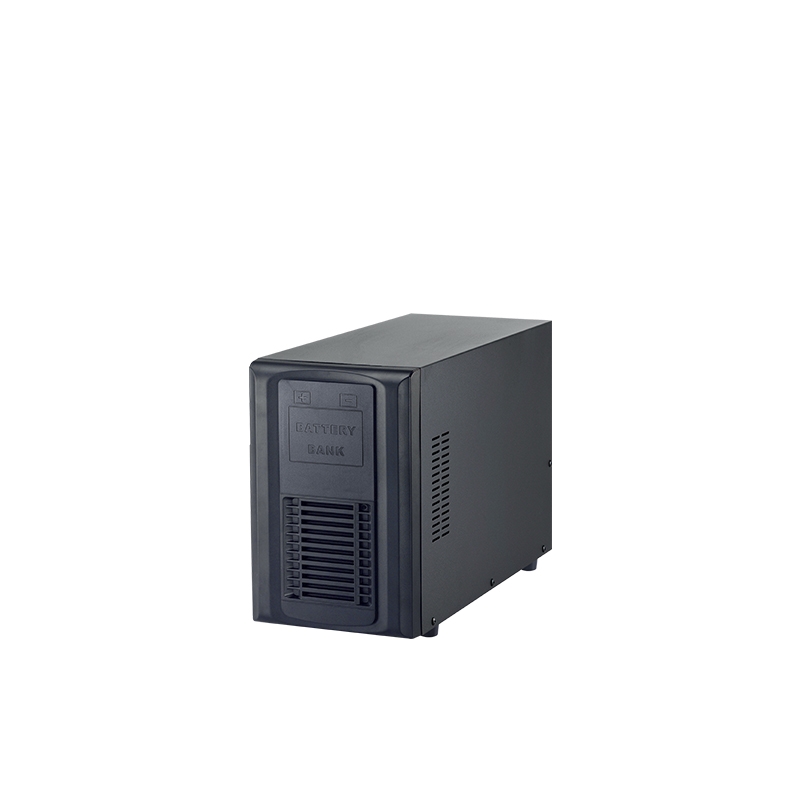

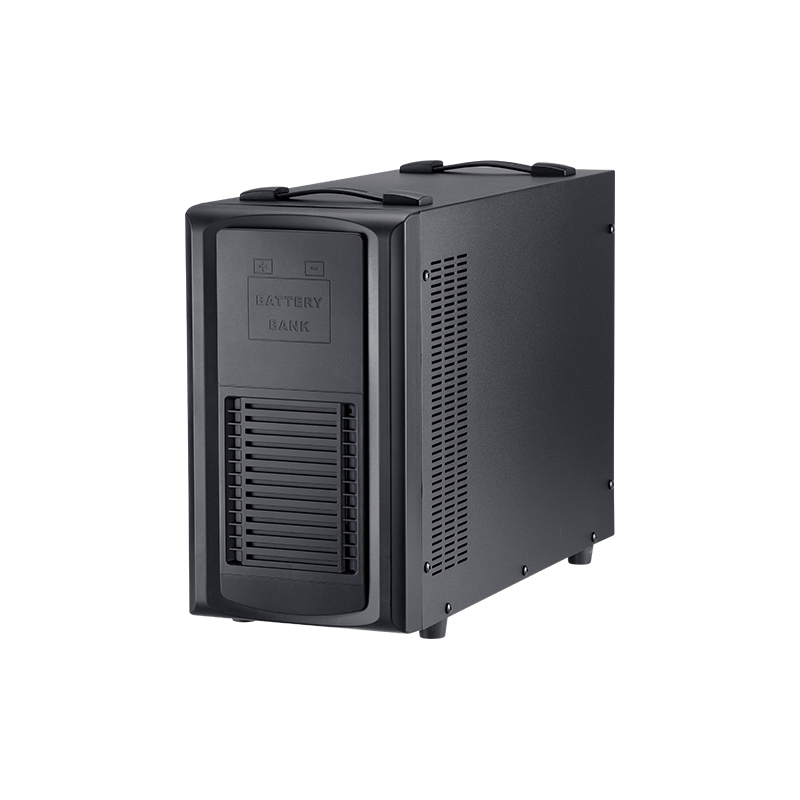

  • External battery bank to extend back-up time (Optional)
  • Intelligent Solt (SNMP) + USB multiple communications
  • Microprocessor control guarantees high reliability
  • Low heat dissipation in long time operation
  • Emergency power-off function (EPO)
  • High efficiency mode (ECO mode)
  • Output voltage regulation +/-2%
  • Automatic self-testing function
  • Power management software
  • Output power factor 0.8
  • Fan speed control
  • Wide input range
  • DC start
MODEL IDEAL-9301LB IDEAL-9301LBE IDEAL-9303LB IDEAL-9303LBE
CAPACITY 1KVA/0.8KW 3KVA/2.4KW
INPUT
Voltage 200/208/220/230/240Vac
Voltage Range 110Vac-300Vac
Frequency 50Hz or 60Hz (Auto-Sensing)
THDi <5% at full Load
OUTPUT
Voltage 200/208/220/230/240Vac
Voltage Regulation +/-2%
Frequency (Battery Mode) 50Hz or 60Hz +/-0.2Hz
Waveform Pure sinewave
THD <3% (Linear Load), <5% (Non-linear Load)
Crest Ratio 3:1
EFFICIENCY
To AC Mode >88% at Full Load and Battery Full Charged
To Battery Mode >85% at Full Load and Battery Full Charged
To ECO Mode >93% at Full Load and Battery Full Charged
BATTERY
Voltage 36VDC 96VDC
Type 12V/7AH*3pcs Extendable 12V/7AH*8pcs Extendable
Recharge Time 5 hours to 90% Depend on capacity of external battery 5 hours to 90% Depend on capacity of external battery
TRANSFER TIME
Line Mode⇔Battery Mode 0ms
Inverter⇔Bypass, ECO Mode <4ms
ECO Mode⇔Inverter <10ms
DISPLAY

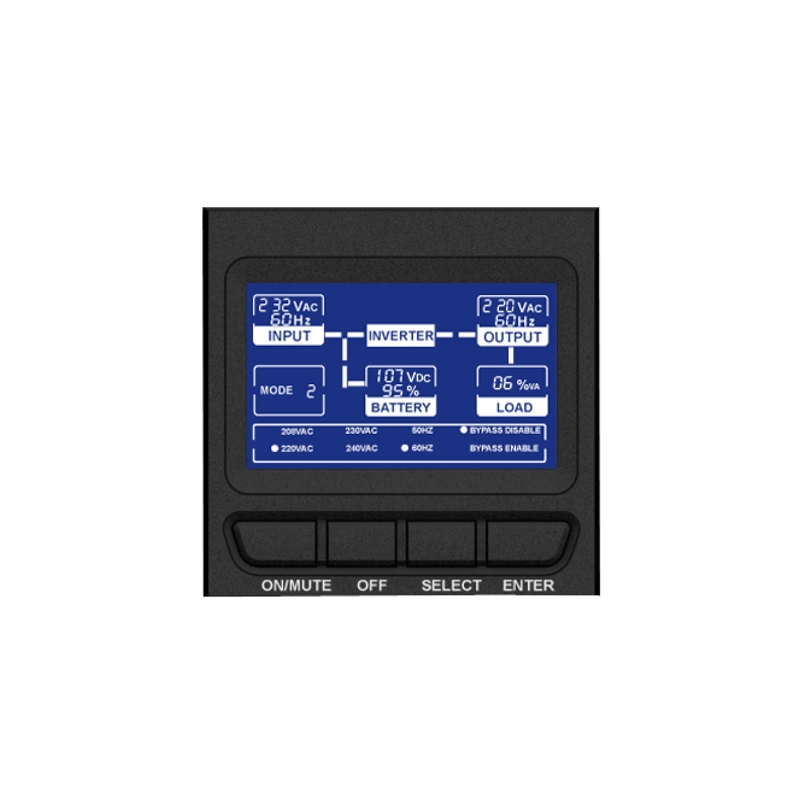

LCD Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable/enable selection information
AUDIBLE ALARM
Battery Mode Beeps every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously beeping
COMMUNICATIONS
Interface (Port) USB Port
Intelligent Slot Slot for SNMP or AS400 card (Optional)
EPO Emergency Power Off
ENVIRONMENT
Temperature 0-45°C
Humidity 20-90% (Non-condensing)
Acoustic Noise <50dB at 1M
PHYSICAL
Dimension (D*W*H) 420*145*230mm 560*193*346mm
**Product specifications are subject to change without further notice.
